VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Boca Raton, FL | TruePane Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum single entry door with a slim, minimalist frame and multi-point locking hardware. It’s built for Boca Raton homeowners who want a front door that makes a statement while standing up to South Florida’s heat, humidity, and storm season without warping, rotting, or swelling. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get factory-backed product quality plus a local installation team that actually knows how these doors need to be set in Florida construction. Call (561) 264-1337 to start a quote.

Call (561) 264-1337

Product Overview - VLX 100 Swing / Entry Door

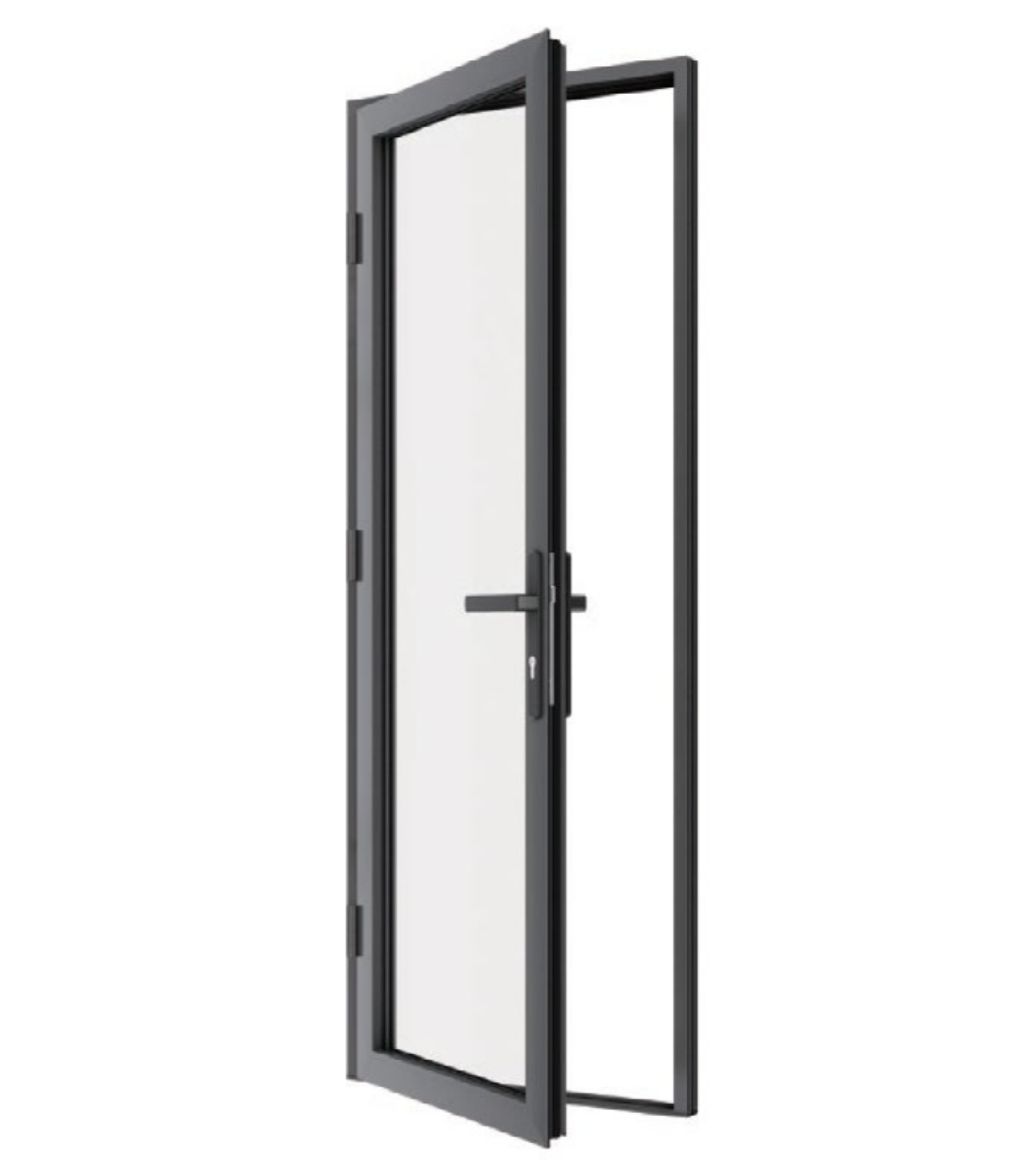

The VLX 100 is a single entry swing door built on a modern aluminum chassis. The design intent is straightforward: reduce the frame to as little visual mass as possible while keeping the structure rigid enough to perform for decades. The profile width sits at just 2.56 inches, which is slim enough to read as contemporary from the street but substantial enough to carry the locking hardware and weather seals without deflection. The minimalist frame is paired with multi-point locking, so the door locks at several points along the jamb rather than just at a single deadbolt location. That changes how the door feels when it closes. It seats into the frame instead of just latching.

What draws Boca Raton buyers to this series is the combination of clean lines and genuine durability. South Florida coastal air is hard on wood and unprotected steel. You’ll see rust on hinges, swollen wood slabs, faded factory paint within a few years of installation. Aluminum with a properly applied finish doesn’t do any of that. The VLX 100 is a door you install once and mostly forget about, which is exactly what most homeowners want from an entry system.

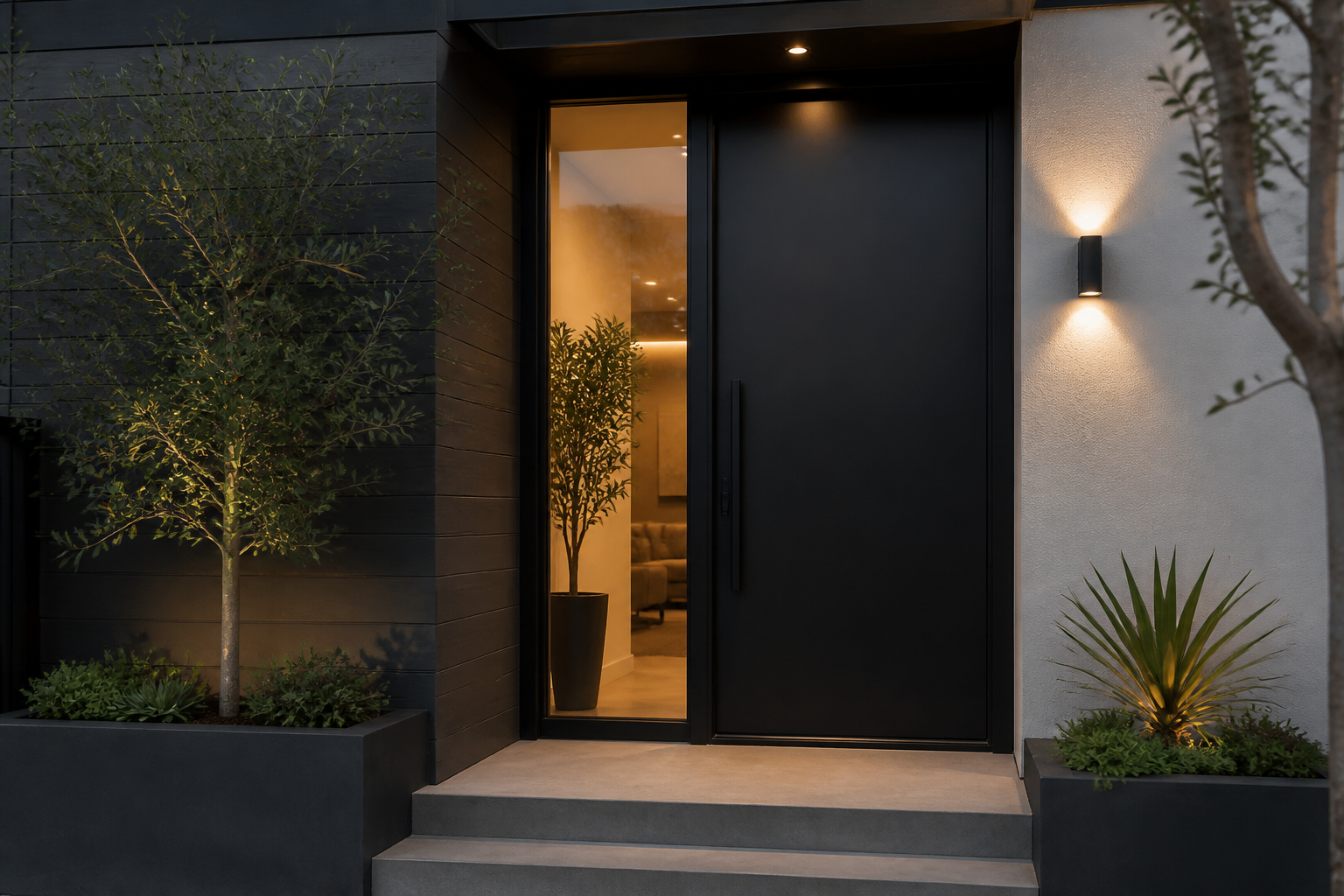

Architecturally, this door works in contemporary spec homes, mid-century ranch remodels, and even transitional designs where the homeowner wants the entry to feel lighter than a traditional wood door would allow. It’s especially popular in neighborhoods like Boca Square, Camino Gardens, and the newer construction around central Boca, where sightlines and clean detailing matter. The door can be configured with glass inserts or as a solid panel, depending on how much light or privacy you want at the entry.

Technical Specifications

The VLX 100 uses a 0.098-inch wall thickness on the aluminum extrusions. That’s a meaningful number because it tells you the frame has real material in it, not a hollow cosmetic shell. It resists racking and keeps the door from sagging over time, even when a large glass lite is specified. The maximum span is 48 inches wide, which covers most single entry openings in Boca Raton homes built after 1990. If your rough opening is wider, we’ll talk through options before you commit to anything.

• Frame profile width: 2.56 inches (slim sightline, full structural depth)
• Aluminum wall thickness: 0.098 inches
• Maximum panel span: Up to 48 inches wide
• Glass types: Clear, frosted, obscure, Low-E, tempered, laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or no screen

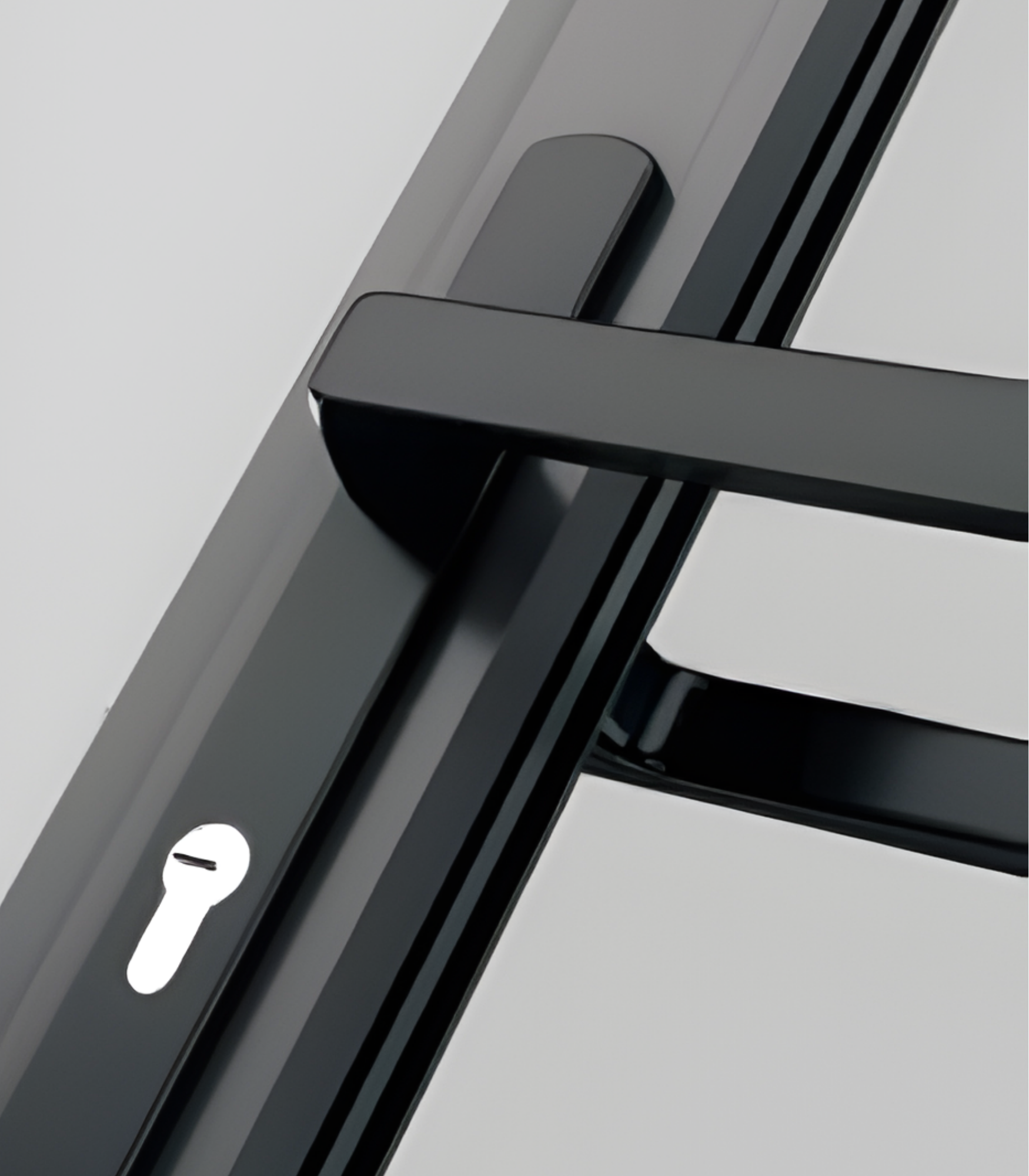

• Locking system: Multi-point lock with hardware accessible from interior
• Thermal performance: Thermally broken frame, NFRC-rated energy performance

Performance Features

Thermal Efficiency - The VLX 100 is built as a thermally broken system, which means the interior and exterior aluminum faces are separated by a non-conductive barrier. That break stops heat from conducting straight through the metal frame, which matters in Boca Raton where afternoon sun hits west-facing entries for hours. You’re not paying to re-cool air that leaked out through the door frame. It’s NFRC-rated, so you can see actual performance numbers instead of trusting a brochure.

Acoustic Performance - Aluminum doors have a reputation for transmitting sound, but the multi-point seal system on the VLX 100 closes the perimeter tightly. If you’re on a busier street in Boca, near Glades Road or Federal Highway, the acoustic difference between this door and a standard builder-grade entry is obvious. We can also spec laminated glass for additional sound dampening.

Airtightness & Weather Seal - The door is designed to be set square and sealed properly, which is where most entry doors fail in South Florida. When the frame isn’t level and plumb, you get gaps that let conditioned air out and humid outdoor air in. The VLX 100 uses compression gasketing around the full perimeter, so the door seals like a window system, not a traditional hinged entry.

Waterproofing - This is where a door lives or dies in Boca Raton. The VLX 100 is designed with integrated drainage that displaces wind-driven rain before it can pool at the threshold or wick into the rough opening. Combined with the AAMA 812 low-expansion foam seal on the perimeter during installation, you get a system that’s built to handle Boca’s summer downpours without swelling, staining, or growing mold in the opening.

Wind Resistance - South Florida building code has strict wind-load requirements, and the VLX 100 is rated for local climate conditions. When our install team sets the frame and anchors it, we’re not guessing. The anchoring pattern is determined by the opening type and local wind zone. If you choose the impact-resistant laminated glass option, the door provides debris protection as well, which many Boca Raton homeowners factor into their hurricane prep

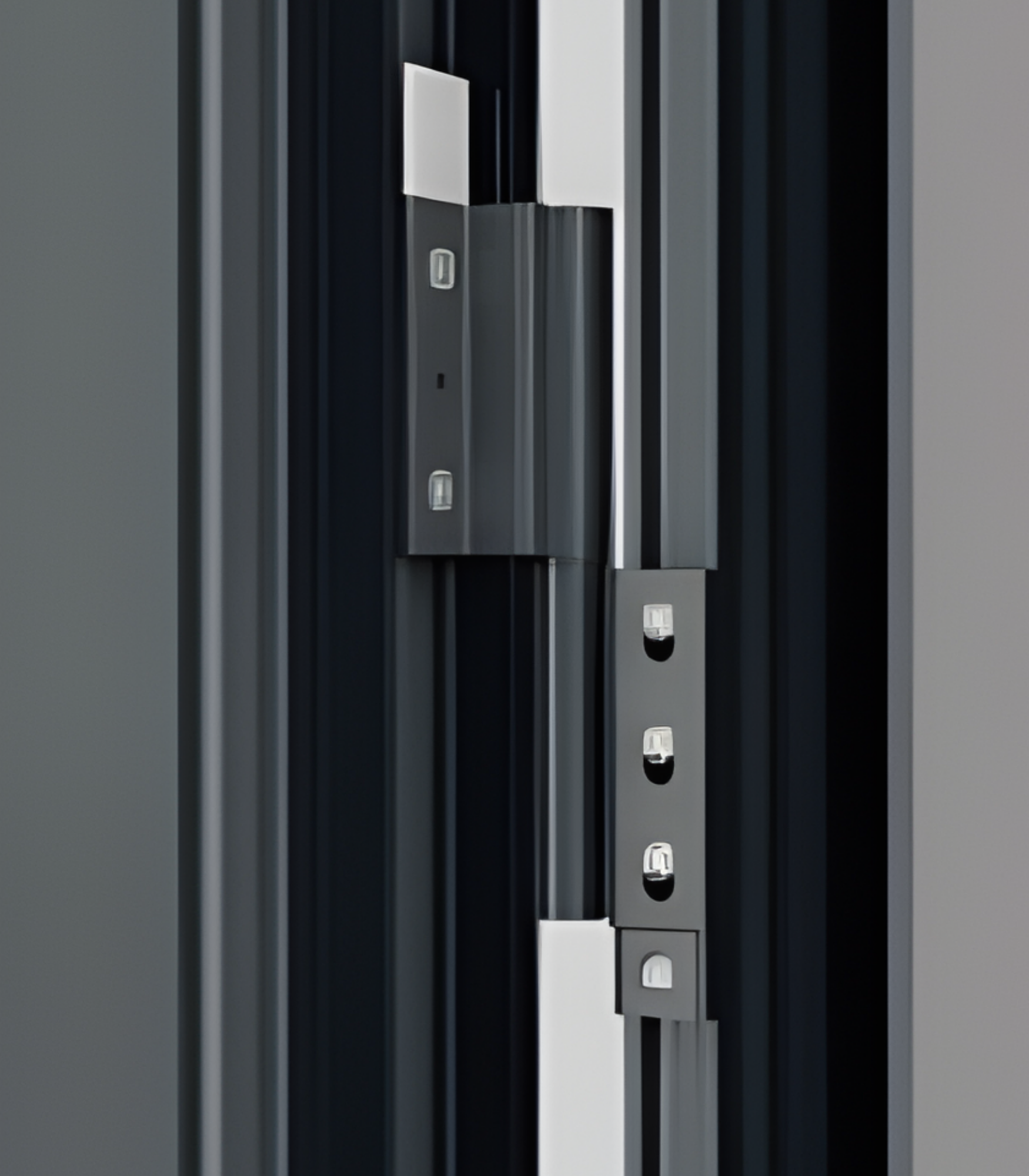

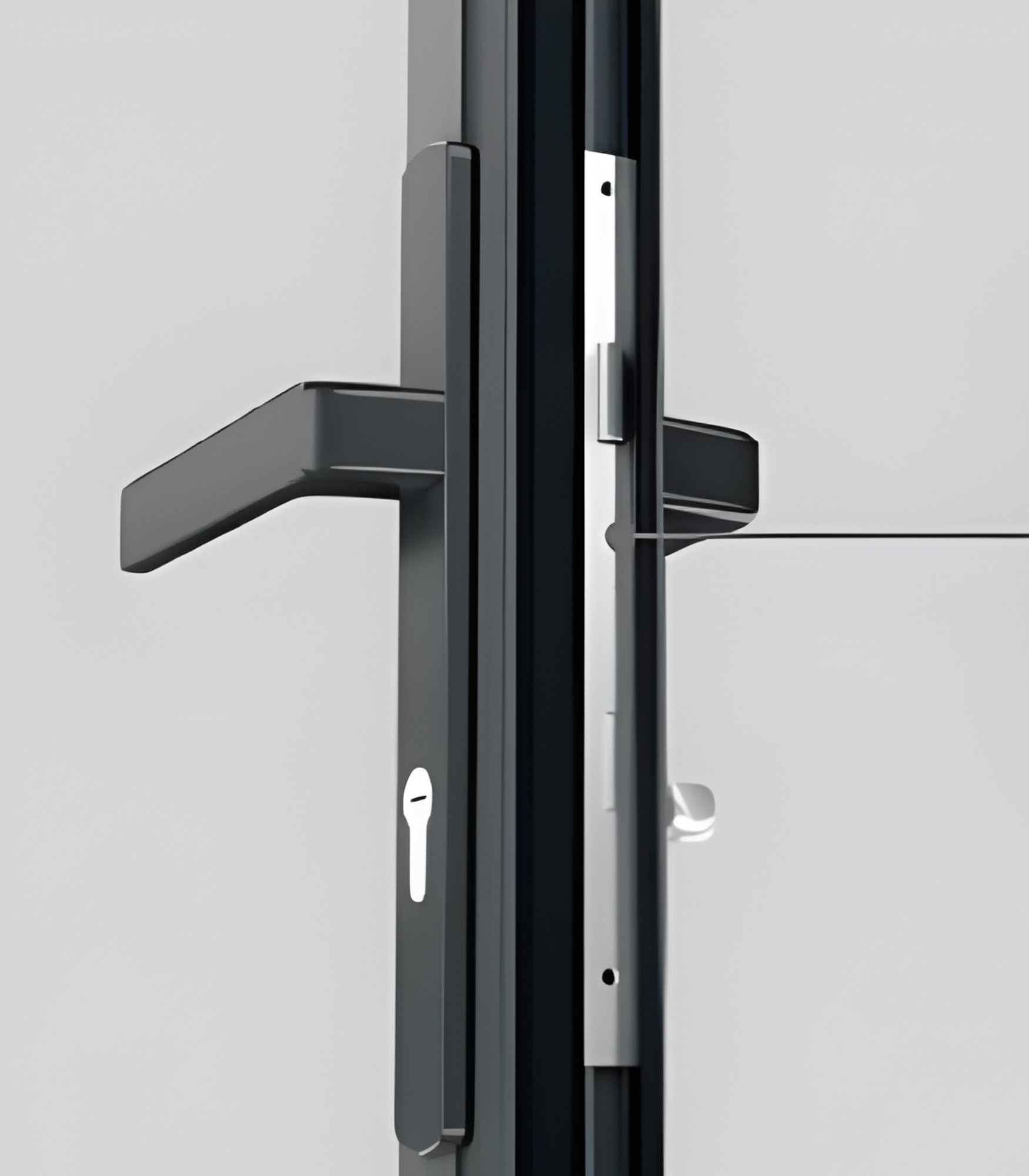

Security & Hardware - The multi-point lock on the VLX 100 engages at several points along the jamb. That spreads the locking force across the frame instead of concentrating it at a single deadbolt. Forced entry is much harder because the door isn’t flexing at the latch point. The hinges are also engineered for these panel weights, so you’re not dealing with sagging hinges two years in.

Color & Glass Options

The six finish options cover most of what we see in Boca Raton. Premium Black is the strongest seller in modern and contemporary homes, especially when paired with white stucco or light limestone exteriors. Pure White reads clean and bright, which works on Key West style and coastal transitional homes. Anodized Silver has a raw metallic tone that fits ultra-modern builds and commercial-style residential entries. Bronze is a warmer dark tone that suits Spanish and Mediterranean facades. Champagne is a softer metallic that blends well with beige and sand tones common in country club communities. Teak Wood is a wood-grain finish for homeowners who want warmth without maintaining actual wood.

Glass choices depend on orientation and privacy. Clear glass maximizes sightlines and light. Frosted and obscure glass give privacy while keeping the entry bright, which is useful when your front door faces the street or a neighbor’s window. Low-E glass cuts heat gain and UV exposure, which protects flooring and furniture near the entry. Tempered glass meets code requirements where safety glazing applies. Laminated glass offers sound and impact benefits, and it’s the one we recommend most often in Boca Raton where wind-borne debris is a genuine concern.

The retractable screen option is worth considering if you want cross-ventilation during the winter months. Retractable screens roll out of the frame when you want airflow and disappear when you don’t, so they don’t compromise the minimalist look of the door.

Installation by TruePane Windows & Doors in Boca Raton

An aluminum entry door only performs as well as the opening it’s set into. We see a lot of Boca Raton homes with high-end doors that leak, bind, or fail because the original installation was sloppy. A door frame that’s out of square forces the slab to compensate, which wears out hinges, compromises the weather seal, and eventually causes the multi-point lock to stop aligning. That’s not a product failure, it’s an installation failure, and it’s exactly what we prevent.

Our process starts with a pre-install inspection. We check the rough opening size, condition of the surrounding framing, and whether the current opening has any water damage that needs to be addressed before a new door goes in. Hiding rot behind a new door doesn’t work in Boca Raton’s climate. The moisture never stops, and it’ll find a way through.

When we set the VLX 100, the frame is leveled, plumbed, and squared before any fastening happens. We anchor per AAMA 2400/2410 installation standards. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which is the same sealant standard used on high-performance window installations. It seals without bulging the frame or blocking drainage paths. After installation, we run a final water test where the job allows, then clean the site up completely.

Professional installation also protects your warranty. Most manufacturers, including ViewLux, condition their warranties on proper installation. If a handyman sets the door wrong and the frame warps or the hardware binds, the warranty won’t save you. TruePane Windows & Doors installs this product as an authorized partner, so you don’t carry that risk.

Frequently Asked Questions - VLX 100 Swing / Entry Door

Get a Quote - VLX 100 Swing / Entry Door in Boca Raton

If you’re replacing an entry door or planning new construction in Boca Raton, let’s talk. We’ll measure your opening, review finish and glass options that work for your elevation, and give you a fixed written quote before you decide anything. Call (561) 264-1337 to schedule your free on-site measurement.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Boca Raton, FL.
