AfterVLX 100 Pivot Door in Boca Raton, FL | TruePane Windows & Doors
The VLX 100 Pivot Door is what happens when an entryway stops being a door and becomes the focal point of the house. Built around a heavy-duty aluminum frame that rotates on a vertical center axis, this door carries oversized glass panels up to 60 inches wide and 120 inches tall, creating a span that standard hinged doors simply can’t handle. It’s the door you choose when the architecture demands more than function. As an authorized ViewLux installation partner, TruePane Windows & Doors brings this product to Boca Raton homeowners with factory-backed installation and local accountability. Call (561) 264-1337 to schedule a free on-site measurement and see what the VLX 100 looks like in your entryway.
Product Overview - VLX 100 Pivot Door
Most doors swing on side hinges. The VLX 100 turns on a pivot point set into the floor and header, which shifts the entire engineering equation. Because the weight travels through the vertical axis instead of hanging off a jamb, the door can be much wider and much heavier than a conventional hinged unit. That’s what allows the full 60-inch slab and the floor-to-ceiling glass that gives this series its presence.
The frame is aluminum with a wall thickness of 0.098 inches and a profile width of 2.56 inches. That’s a substantial section, and it has to be. A pivot door of this scale carries hundreds of pounds in motion every day, and the frame is what keeps the panel true over years of operation in South Florida heat and humidity. There’s no sag correction every other summer, no re-hanging after a storm season. The geometry is built in at the factory.
In Boca Raton, we see the VLX 100 specified for modern single-story homes in Royal Palm Yacht & Country Club, updated mid-centuries in Pearl City, and the newer custom builds east of Dixie Highway where curb appeal is half the design budget. Buyers choose this series because they want an entryway that reads as architectural, not just functional. The oversized glass pulls light into the foyer. The narrow sightlines keep the frame from interrupting the view. And the pivot motion itself is a detail people notice the first time they walk through.
TruePane Windows & Doors is an authorized ViewLux installation partner, which means we’re trained on this exact product line, we install it to the manufacturer’s engineering requirements, and we stand behind the work locally from our base in Boca Raton.
Technical Specifications
Here’s the VLX 100 by the numbers, in plain terms:
- Frame material: Extruded aluminum, wall thickness 0.098 inches
- Profile width: 2.56 inches, slim enough for clean sightlines but wide enough for structural integrity
- Maximum panel size: Up to 60 inches wide by 120 inches tall
- Operation: Vertical center-axis pivot, floor and header mounted
- Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Thermal performance: Thermally broken frame, NFRC-rated energy data available by glass package
- Impact option: Laminated impact-resistant glass available for wind-borne debris zones
- Installation standard: AAMA 2400/2410 compliant, AAMA 812 foam sealant on all perimeter joints
These numbers translate into a door that feels stable when it moves. The mass is deliberate. The engineering is conservative where it matters.
Performance Features
Thermal Efficiency - The aluminum frame carries a thermal break that separates interior and exterior faces, which is the difference between a door that sweats and one that holds conditioned air. NFRC-rated glass packages let us match the energy performance to your exposure. East-facing entries in Boca Raton get a different Low-E spec than north-facing ones, and we spec accordingly.
Acoustic Performance - Laminated glass changes how sound travels through the panel. On busy streets like Palmetto Park Road or Glades Road corridors, a laminated upgrade drops road noise noticeably at the entry. It’s not recording-studio quiet, but it takes the edge off and makes a foyer feel calmer.
Airtightness & Weather Seal - Every perimeter joint on a VLX 100 installation gets AAMA 812 low-expansion foam sealant, per TruePane’s install protocol. That means no micro-gaps at the threshold, no drafts around the pivot hardware, no humidity leaks. In Boca’s year-round moisture, this is where cheap installs show themselves within a season.
Waterproofing - The threshold and sill details are where pivot doors live or die in Florida. We set the sill assembly for positive drainage, flash the rough opening, and seal to AAMA standards. During our final walkthrough we water-test the threshold before we call the job done. If water pools anywhere it shouldn’t, we fix it before you ever see it.
Wind Resistance - Boca Raton sits in a high-velocity wind zone, and a 60-by-120 slab of glass is subject to real wind load. The VLX 100 is wind-load rated for local climate requirements, and the laminated impact glass option brings it in line with code for wind-borne debris regions. We’ll verify your specific requirement based on your address and exposure category during the quote.
Security & Hardware - Pivot hardware is load-bearing, not decorative. The floor closer and top pivot carry the full weight of the panel, and this series is engineered for daily residential use without hardware fatigue. We set hardware to factory torque specs during install and verify operation through 50 full open-close cycles before handoff.
Color & Glass Options
The finish sets the tone before anyone touches the handle. Premium Black is the most requested finish in Boca Raton right now, especially on white or light stucco elevations where the contrast does the design work. Pure White suits coastal and transitional homes that lean softer. Anodized Silver has that raw metal honesty that reads modern without being aggressive. Bronze pairs well with warmer exterior palettes and mature landscaping. Champagne is the choice when the entry needs a subtle lift, a touch of warmth that doesn’t shout. Teak Wood finish gives the warmth of wood grain with zero maintenance, popular for mid-century-inspired rebuilds in Boca’s older neighborhoods.
On the glass side: Clear keeps sightlines pure. Frosted gives privacy at the entry while still passing light. Obscure offers more privacy with texture. Low-E cuts UV and solar heat gain, which matters on West-facing entries. Tempered glass is the safety standard across all packages. Laminated glass is the impact option, and the one we recommend for any Boca Raton home in a wind-borne debris zone.
Installation by TruePane Windows & Doors in Boca Raton
A pivot door is only as good as its installation. This isn’t a boilerplate line. The single most common reason pivot doors fail in South Florida is poor installation: a rough opening that’s out of square, a floor track that wasn’t leveled, a pivot that wasn’t aligned to the header point. When that happens, the door binds, the slab sags, the glass stresses, and the manufacturer warranty doesn’t cover any of it because the failure was in the install, not the product.
TruePane Windows & Doors installs the VLX 100 per the AAMA 2400/2410 standard, which governs the installation of windows and doors. That means reference points are checked and confirmed, the unit is set level, plumb, and square before any anchoring, and all perimeter joints get AAMA 812 low-expansion foam sealant. No gaps, no shortcuts.
Our process starts with a pre-install inspection of your rough opening and floor condition. Pivot doors need a floor that can accept and transfer the load, and a header that’s structurally capable of carrying the top pivot. If adjustments are needed, we tell you before installation day, not during it. On install day, we set the frame, hang the slab, adjust the sweep, run the door through its full range of motion, and make final adjustments until the movement is smooth with no binding at any point. We water-test the threshold. Then we walk the door with you and explain exactly how the floor closer, latching, and adjustment points work.
Boca Raton adds its own layer to this: coastal air means corrosion resistance matters on hardware choices, and local building code requires wind-load documentation for large openings. We handle the permit paperwork and we know what the inspection office in Boca looks for on pivot door penetrations. That local knowledge isn’t something an out-of-town crew brings.
Frequently Asked Questions - VLX 100 Pivot Door
Lead time for the VLX 100 typically runs 6 to 10 weeks from order approval, depending on the glass package and finish you select. Custom sizing and laminated impact glass can push that toward the longer end. We’ll give you a firm delivery window when we quote, and we don’t schedule your installation until the door is physically in our Boca Raton shop and inspected. Call (561) 264-1337 to start a quote and lock in your timeline.
Eligibility depends on the specific glass package and the current federal and local incentive programs at the time of purchase. The thermally broken frame and Low-E glass options are designed to meet NFRC performance standards, and we can provide the performance documentation your accountant or filing needs. We won’t promise a credit without verifying your specific configuration. Call (561) 264-1337 and we’ll spec the door with whatever performance targets your situation requires.
The VLX 100 carries the manufacturer’s warranty through ViewLux, and coverage is conditioned on installation by an authorized partner following the engineering requirements. As an authorized ViewLux installation partner, TruePane Windows & Doors installs to factory spec, which keeps your warranty intact. We also stand behind our installation workmanship with our own service warranty. Call (561) 264-1337 and we’ll walk you through exactly what’s covered before you commit.
Yes, within the structural envelope. The maximum panel size is 60 inches wide by 120 inches tall, and panels can be sized below that dimension. Your rough opening, floor structure, and wind-load requirements all factor into the final panel size. The opening gets measured precisely before we order, because a pivot door has tighter tolerances than a standard swing door. Call (561) 264-1337 to schedule your free measurement.
Aluminum finishes need very little: wash with mild soap and water a few times a year, keep the floor track and pivot hardware clear of sand and debris, and wipe down the gaskets with a silicone-based protectant annually. In Boca Raton’s salt-air environment within a few miles of the beach, that annual wipe-down matters more than it would inland. We’ll show you exactly what to touch and what to leave alone during your installation walkthrough.
Get a Quote - VLX 100 Pivot Door in Boca Raton
The best next step is a free on-site measurement. We’ll check your rough opening, confirm your glass and finish selections with samples in hand, and give you a written line-item quote with no pricing surprises later. Projects start when you’re ready. Call TruePane Windows & Doors at (561) 264-1337 to schedule yours.
Written by the team at TruePane Windows & Doors, serving Boca Raton as an authorized ViewLux installation partner.
Six Reasons Homeowners Choose TruePane Windows & Doors
Impact systems engineered to design pressures up to +/-100, matched to your wind zone - your openings hold when the storm arrives.
Low-E insulated impact glass from our manufacturer lines commonly cuts monthly cooling bills 20-30%.
Laminated impact glass shuts out up to 40% of outside noise - traffic, neighbors, weather.
Monitoring services run $30-90 a month. Laminated impact glass resists forced entry around the clock, with no subscription.
Florida homeowners average around 25% savings on the windstorm portion of their policy after protecting every opening - some homes qualify for more.
A full impact package upgrades curb appeal, buyer confidence and appraised value in one project.
Other TruePane Windows & Doors Services
What Neighbors Say About TruePane Windows & Doors

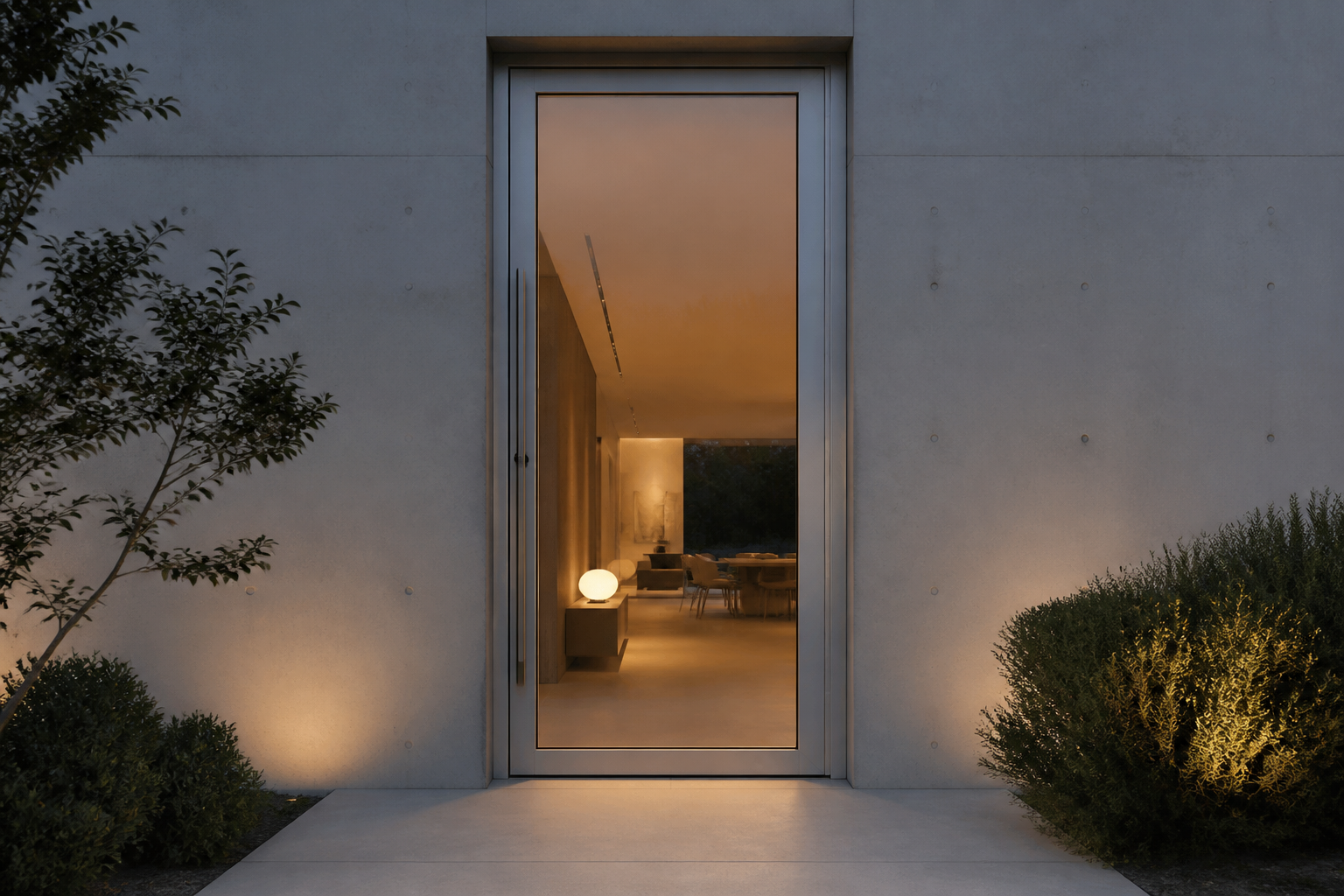

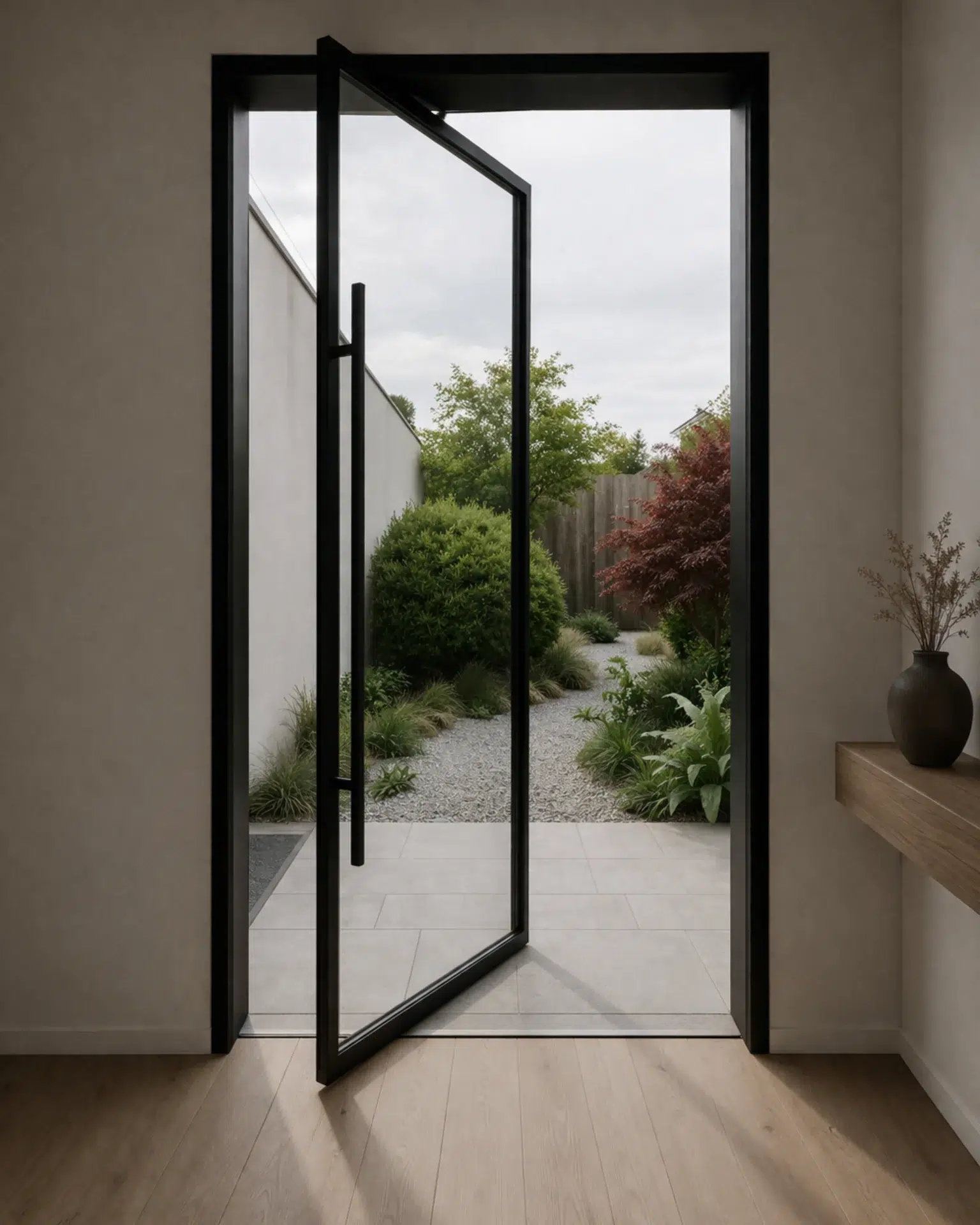

Detailed Images
