VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Boca Raton, FL | TruePane Windows & Doors

The VLX 80 Fixed / Picture Window is what we recommend when a homeowner in Boca Raton tells us they want the glass to do the talking. There is no sash, no crank, no visible hardware. Just a slim 1.97-inch aluminum frame holding a massive pane that can stretch up to 120 inches wide. You get floor-to-ceiling sightlines, which matters in a city where water views and lush tropical landscaping are part of why people buy the house in the first place. As an authorized ViewLux installation partner, TruePane Windows & Doors supplies and installs this exact series across Boca Raton, Royal Palm Yacht & Country Club, and Woodfield Country Club. Call (561) 264-1337 to talk specs, pricing, or to schedule a free on-site measurement.

Call (561) 264-1337

Product Overview - VLX 80 Fixed / Picture Window

A picture window earns its place in a home by doing one job perfectly: framing the view without getting in the way. The VLX 80 is built around that idea. The frame profile is intentionally narrow, which means more glass per square foot of opening than you’d get with a bulkier frame system. When we install this window in a great room facing Lake Boca or a second-story primary bedroom overlooking a canal, homeowners consistently tell us the same thing: it feels like the wall disappeared.

The engineering underneath is what makes that experience durable. The aluminum frame has a wall thickness of 0.079 inches, which gives the window structural rigidity without the heaviness of older commercial-grade frames. Aluminum doesn’t warp, swell, or rot in South Florida humidity the way wood or some vinyl products can. That matters in Boca Raton, where summer dew points sit in the mid-70s and salt air drifts in from the Atlantic.

This is a window for the homeowner who wants clean lines, uninterrupted glass, and a frame narrow enough to disappear visually. We’ve put the VLX 80 into modern concrete-and-glass builds in Mizner Park, Mediterranean-style estates in Old Floresta, and low-slung mid-century homes in Boca Raton Hills. The window adapts because the frame is minimal and the finish options are broad.

You also avoid the maintenance headache of operable hardware. A fixed window has no moving parts to wear out, no tracks to clean, no balance springs to fail. For a second-floor window that’s hard to reach, that’s a practical advantage. For a statement window behind a dining table or above a soaking tub, it’s an aesthetic one.

Technical Specifications

Here are the numbers that define the VLX 80 Fixed / Picture Window. We’re giving you the raw specs because we believe buyers in Boca Raton are sophisticated enough to use them when comparing bids.

• Frame wall thickness: 0.079 inches, a solid middle ground between weight and strength.

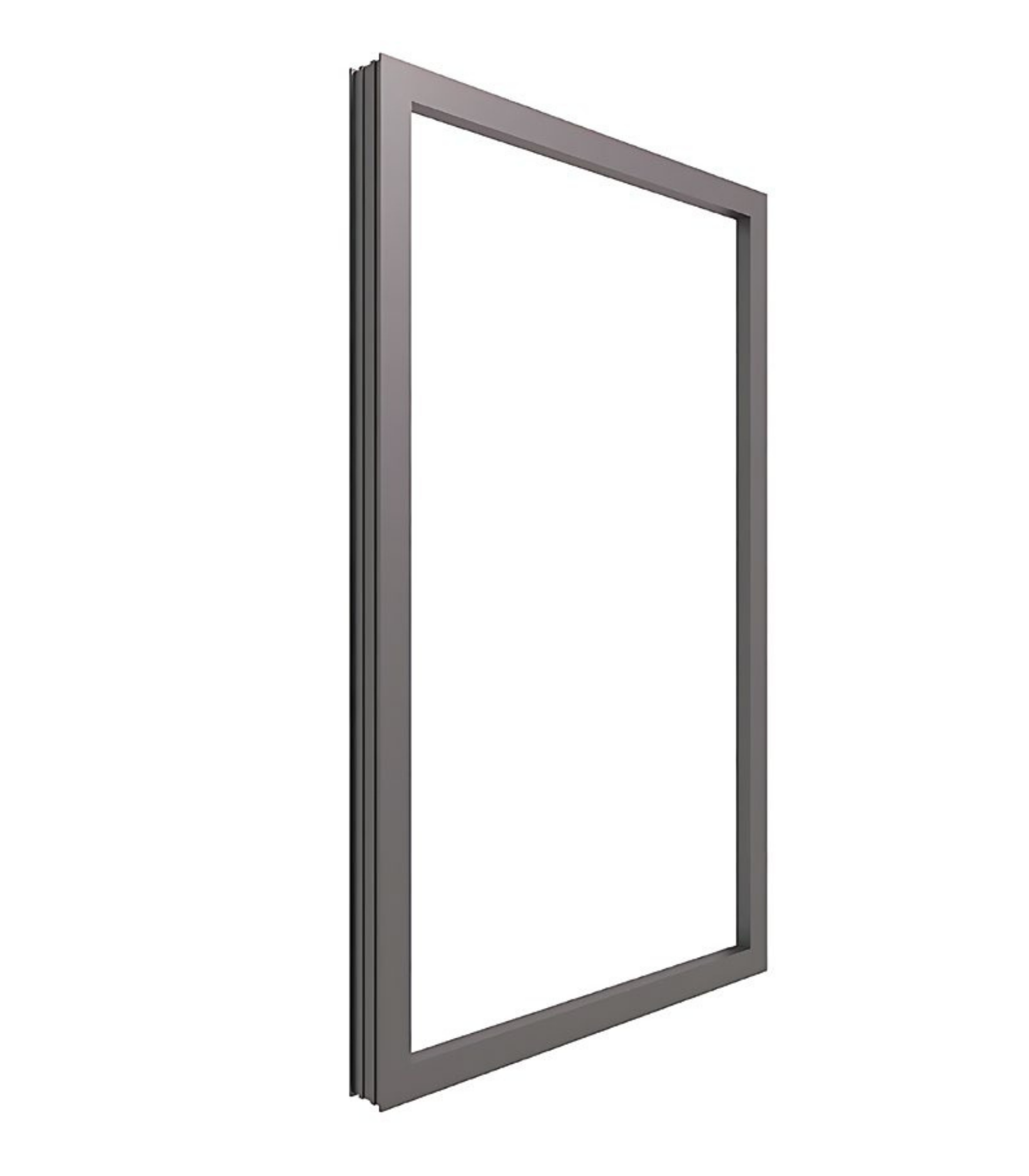

• Profile width: 1.97 inches, which keeps sightlines clean while maintaining structural integrity.
• Maximum span: up to 120 inches wide, making this window viable for full-wall glass installations.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Glass configuration: Single, dual, or impact-laminated insulated glass units, depending on code requirements and homeowner preference.
• Thermal break: Standard on this series, thermally separating the interior and exterior aluminum profiles.
• Performance compliance: NFRC-rated for thermal performance; selectable glass packages meet Miami-Dade and Palm Beach County wind-load requirements.
• Installation standard: Installed by TruePane Windows & Doors per AAMA 2400/2410, using AAMA 812 low-expansion foam sealant on all perimeter joints.

Performance Features

Thermal Efficiency - The VLX 80 uses a polyamide thermal break that separates the interior and exterior aluminum profiles. This interrupts conductive heat transfer, which is the same principle that makes a double-wall travel mug work. With Low-E glass selected, the window keeps Boca Raton’s afternoon heat outside and your air-conditioned air inside. That translates to lower cooling bills from April through October, when your AC runs hardest.

Acoustic Performance - Laminated glass acts as a sound dampener by sandwiching a plastic interlayer between two panes. For homes on Federal Highway, near I-95, or under the Boca Raton Airport flight path, we recommend laminated glass in the VLX 80. Traffic roar and low-flying aircraft noise drop noticeably, and the interlayer also adds a layer of shatter resistance that standard annealed glass doesn’t provide.

Airtightness & Weather Seal - A fixed window has a natural advantage over operable windows: no gaps around sashes. The VLX 80 capitalizes on that with factory-sealed glazing and a perimeter seal system that keeps conditioned air in and humidity out. During Boca Raton’s wet season, when outdoor humidity hovers near 90 percent, a properly sealed fixed window prevents the condensation and mold issues that plague poorly sealed openings.

Waterproofing - We install every VLX 80 with AAMA 812 low-expansion foam sealant on all perimeter joints, followed by a continuous exterior seal. The fixed design means no weep-holes or sill tracks that can clog with sand and debris from Boca Raton’s ocean breeze. Water gets one chance at entry, and we eliminate it before it becomes a problem.

Wind Resistance - Palm Beach County sits in a High Velocity Hurricane Zone. The VLX 80, when configured with impact-resistant laminated glass and the appropriate anchoring schedule, is built to meet the wind-load requirements that South Florida building codes demand. For our customers in coastal Boca Raton communities like The Sanctuary or Boca Towers, this is not optional. It’s code, and it’s peace of mind.

Security & Hardware - A fixed window is inherently more secure than an operable one because there is no sash to pry open. The VLX 80’s glazing bead seats from the interior, meaning the glass cannot be removed from outside. Why does that matter? Because a burglar testing windows on a Boca Raton home will skip the one that requires standing in the flower bed with a crowbar for ten minutes.

Color & Glass Options

The VLX 80 comes in six finishes. Premium Black is the choice for modern and contemporary homes in Boca Raton, particularly those with black-framed windows as a design signature. It reads as architectural and intentional, especially against white stucco or light limestone. Pure White suits traditional and tropical homes, blending into trim and letting the view take center stage. Anodized Silver gives a raw, machined look that fits industrial-loft aesthetics and many mid-century homes in Boca Raton Hills.

Bronze is a warm alternative that reads well on Mediterranean and Spanish-style homes in Old Floresta. Champagne is subtle and elegant, a fit for interiors where a softer metallic is preferred. Teak Wood is a woodgrain finish on aluminum, offering the warmth of wood with the durability of metal. It’s popular in country-club communities in Boca Raton where homeowners want a wood look without wood windows’ termite and rot concerns.

On glass, Clear maximizes visible light and is our default for non-impact interior applications. Frosted works for sidelights, bathrooms, or any location where you want light without exposure. Low-E is the energy-efficiency workhorse, blocking infrared heat while staying visually clear. Tempered is safety glass that shatters into small, dull pieces, required by code in many locations. Laminated glass is the impact-rated option for hurricane protection. Gray Tint and Black Tint cut glare and solar heat gain, useful for west-facing windows in Boca Raton that catch punishing afternoon sun.

Installation by TruePane Windows & Doors in Boca Raton

Here is a sentence that should concern anyone shopping for windows in Boca Raton: most window failures are installation failures, and an improper installation voids the manufacturer’s warranty. ViewLux builds a high-quality window. But a high-quality window set out of square, under-screwed, and sealed with whatever caulk was on sale at the hardware store will leak, fog, and fail long before its time.

That’s why we install the VLX 80 by the book, and the book is the AAMA 2400/2410 installation standard. Our process starts with a pre-install inspection of the rough opening. We measure, check for plumb and level on the existing framing, and identify any water-intrusion risks before the old window ever comes out.

We set every window level, plumb, and square. That’s not marketing language; that’s the tolerance a window needs to function and seal correctly. We then shim and anchor per the wind-load schedule required for Palm Beach County and seal the perimeter with AAMA 812 low-expansion foam. That foam expands to fill every void and gap, creating an airtight, waterproof bond that standard fiberglass insulation or a bead of caulk simply cannot match.

We finish with a water test on the exterior and a visual inspection of the interior seal. Cleanup is part of the job; we remove old windows, debris, and packaging, leaving your home in the condition we found it, minus the old windows. If you’re replacing windows in a high-rise condo in downtown Boca Raton or a canal-front home in Royal Palm Yacht & Country Club, our crew is experienced with the access, hoisting, and code requirements those projects involve.

Frequently Asked Questions - VLX 80 Fixed / Picture Window

Get a Quote - VLX 80 Fixed / Picture Window in Boca Raton

You’ve read the specs, you’ve seen the options, and now you probably want to know what this window will cost in your home. It’s a fair question, and it’s one we answer with a written line-item quote after a free on-site measurement. No guessing, no vague ranges, no pressure. We’re a local Boca Raton company, and we stand behind every VLX 80 we install. Call (561) 264-1337 to schedule your free estimate.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Boca Raton, FL.
