The VLX 100 bifold door turns an ordinary wall into a 20-foot-wide opening that folds away panel by panel. For Boca Raton homeowners, that means a living room that opens completely onto a pool deck, a dining area that flows into a lanai, or a kitchen that connects to an outdoor grill space without a post in the way. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get factory-backed product support and an installation crew that sets every door level, plumb, and square. Call (561) 264-1337 to schedule a free on-site measurement in Boca Raton.
Product Overview - VLX 100 Bifold / Folding Door

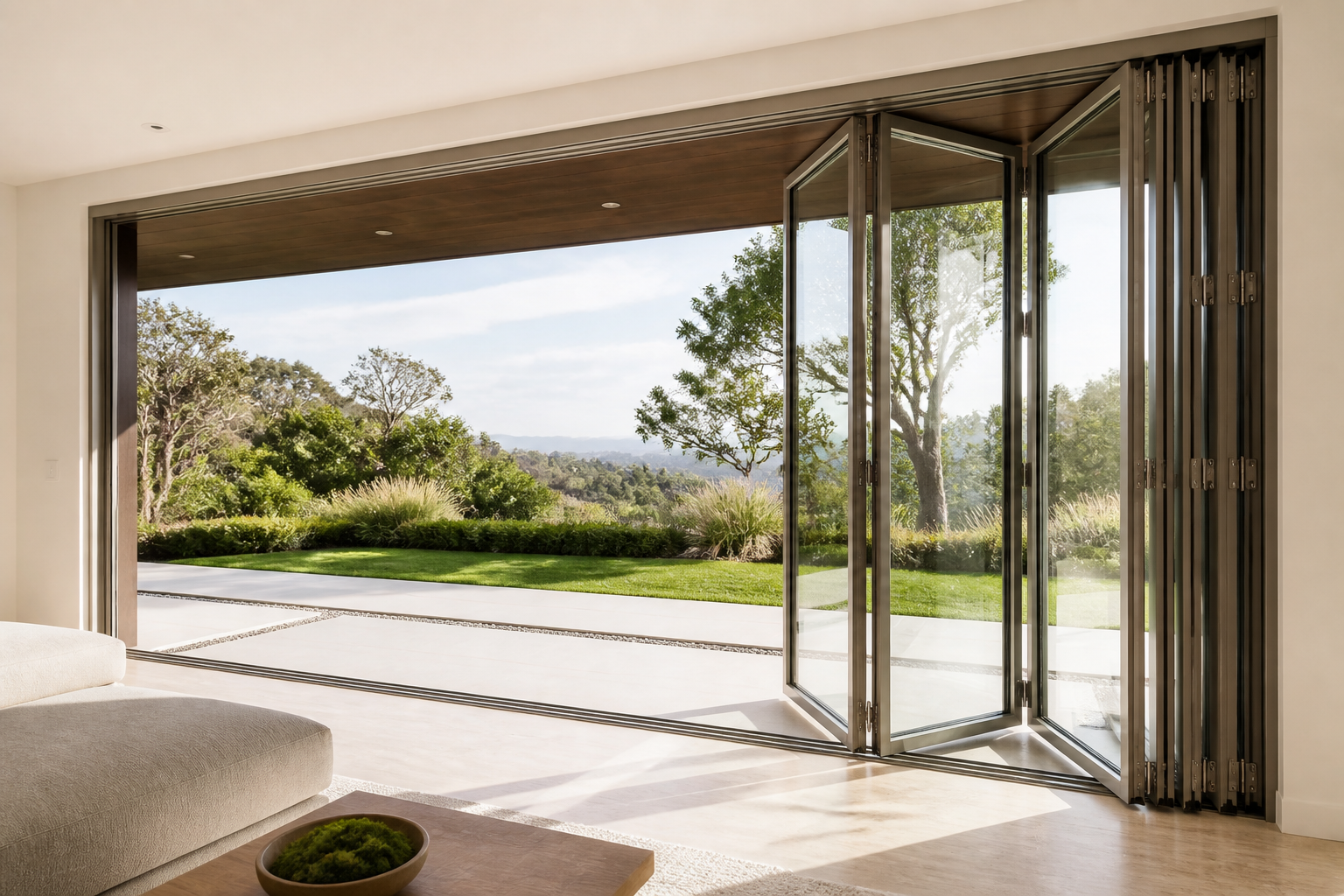

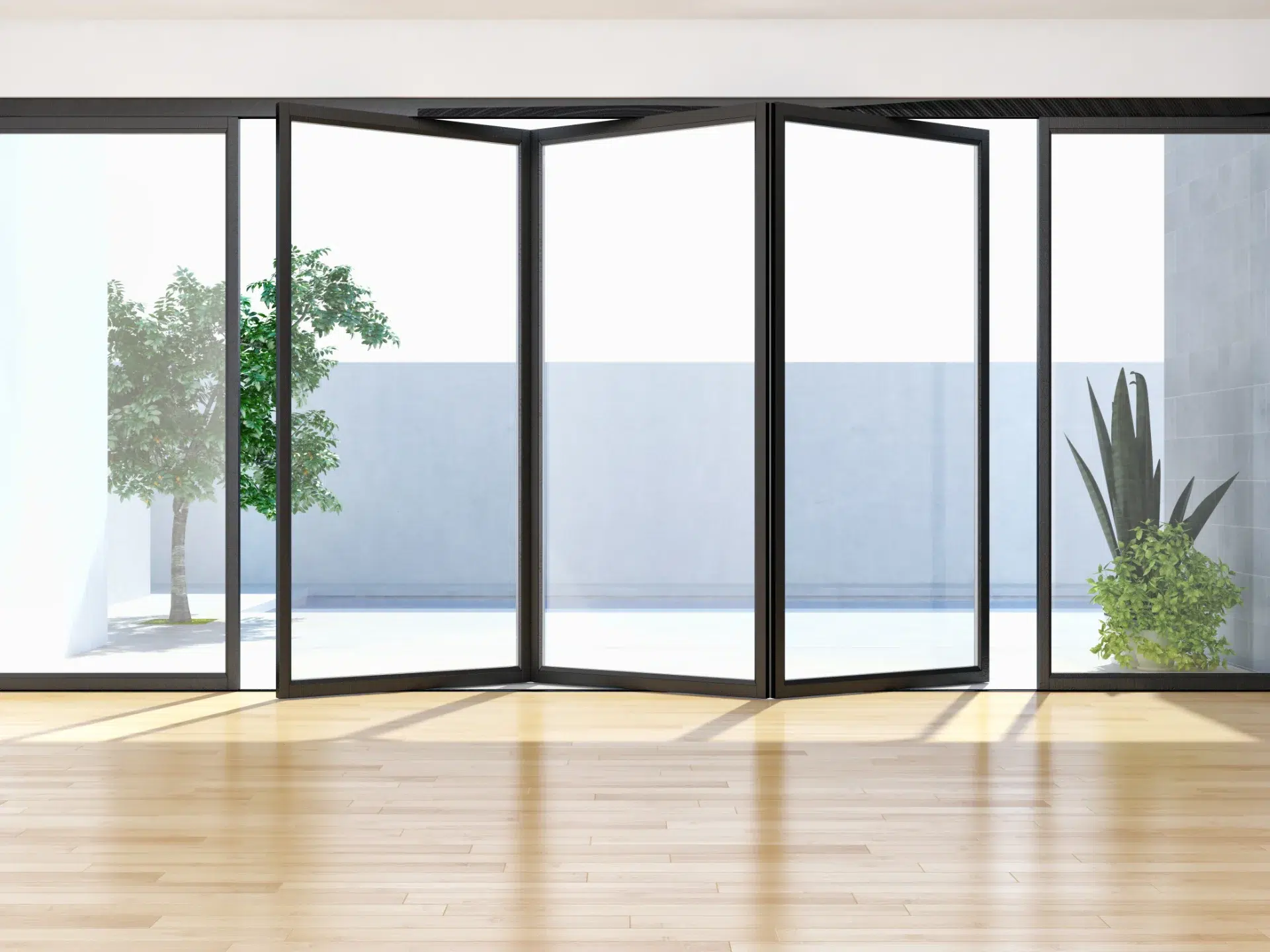

The VLX 100 is an accordion-style aluminum bifold door built for wall-to-wall openings. Instead of one fixed pane and one active door, the system uses multiple panels that stack neatly to the side. When fully open, you get roughly 90% of the rough opening as clear passage space. That is the difference between a room that “has a nice view” and a room that physically becomes part of the outdoors.
Architecturally, this door fits the Florida modern aesthetic that dominates new construction and renovations across Boca Raton. Clean sightlines, slim aluminum profiles, and no bulky center mullions. Homeowners choose the VLX 100 over sliding glass doors when they want the widest possible opening without the cost and complexity of a custom lift-and-slide system. The aluminum frame resists corrosion in coastal air, which matters in Boca Raton where salt humidity is a daily reality, not a seasonal event.
The engineering is straightforward: each panel hangs from a top-hung roller system that carries the weight, so the bottom track stays low and easy to walk over. Panels connect with hinges that align flush when closed and fold compactly when open. The result is a door that operates with one hand but feels solid enough for a 10-foot-tall opening.
Technical Specifications
Here is the VLX 100, spec by spec, as we configure it for Boca Raton homes:

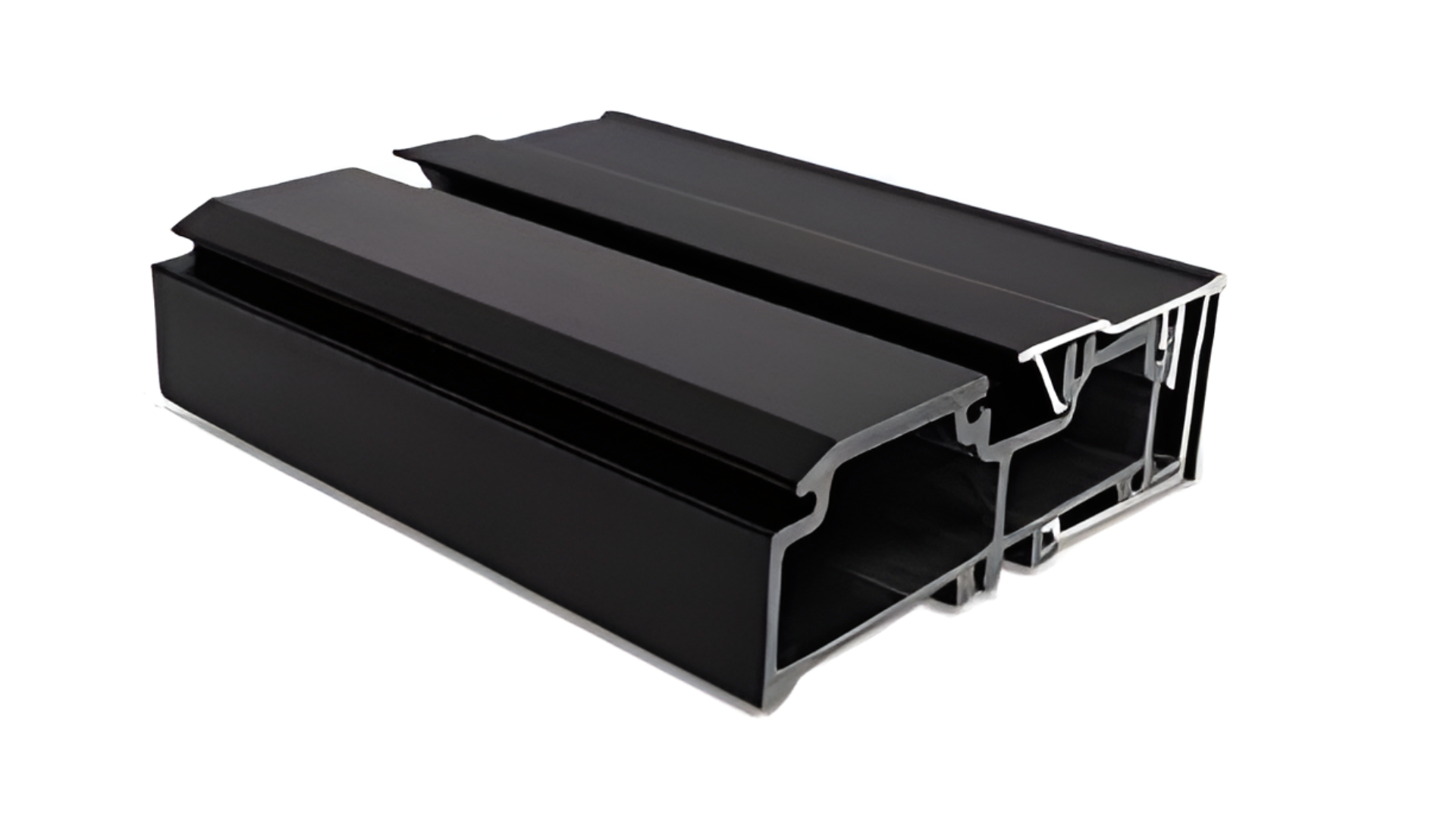

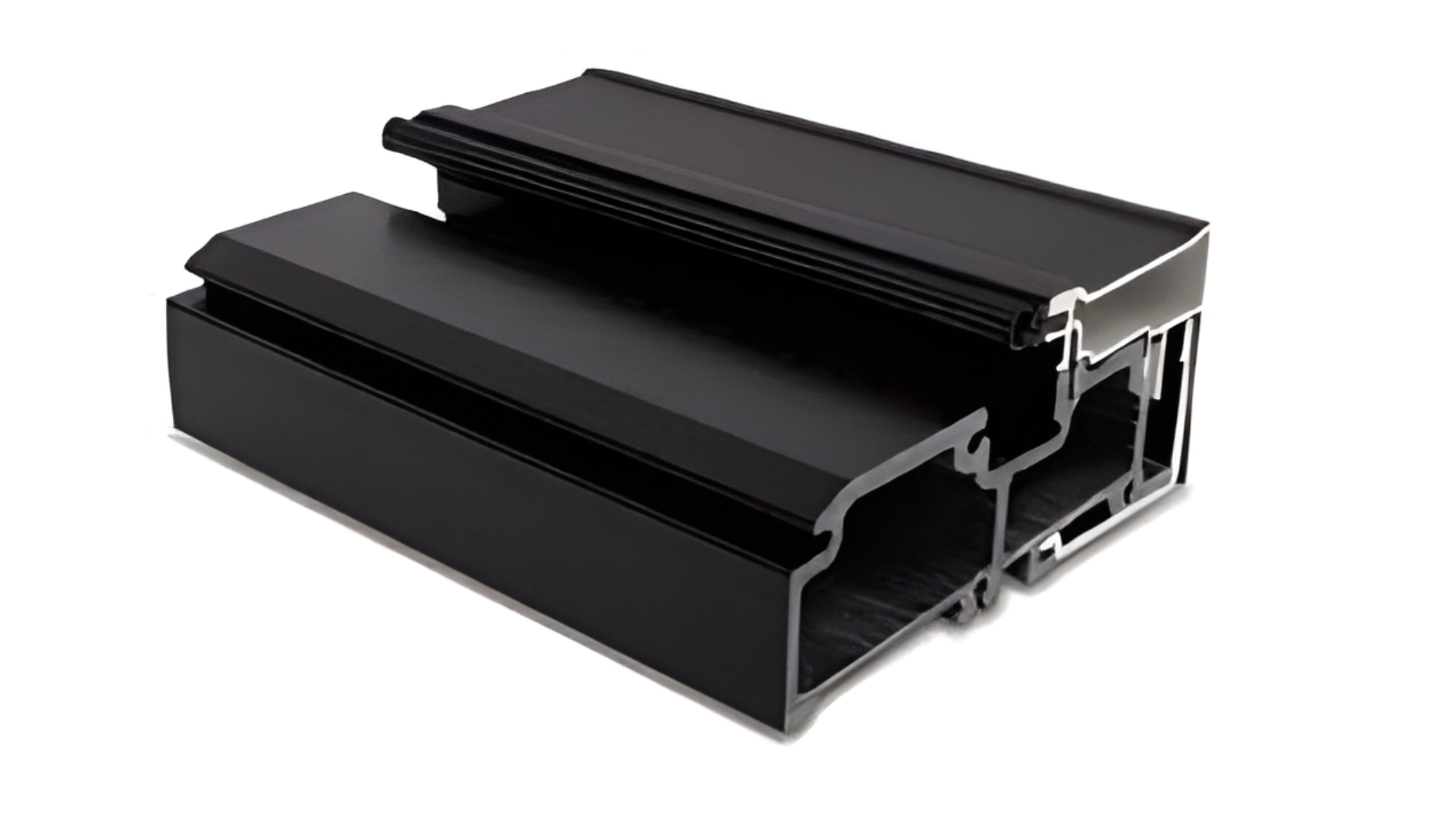

- Wall thickness: 0.098 inches of extruded aluminum wall, which gives the frame its rigidity on wide spans without adding visual bulk.
- Profile width: 2.56 inches across the interlock. Slim enough for modern sightlines, wide enough to house the locking hardware and weather gaskets.
- Maximum span: Up to 20 feet wide across a single opening when configured with the full panel count.
- Track configurations: Available as a 2-Panel, 3-Panel, 4-Panel, 5-Panel, or 6-Panel system. Panel count is dictated by your opening width and how much stack space you want on the side.
- Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
- Screen options: Retractable screen available for bug-season evenings, or no screen for a completely clean threshold.
- Performance standards: Thermally broken profile, NFRC-rated energy performance, installed per AAMA 2400/2410, perimeter-sealed with AAMA 812 low-expansion foam.
Performance Features
Thermal Efficiency - The VLX 100 uses a thermal break inside the aluminum profile, which interrupts heat transfer from the exterior face to the interior face. In Boca Raton, that means your air-conditioned air stays inside and the July sun stays outside. The system is NFRC-rated, so we can give you real U-factor and SHGC numbers for the glass package you choose, not just marketing language.
Acoustic Performance - Folding doors get a reputation for being “thin,” but the VLX 100 does not perform like one. The multi-point interlocking panels and full-perimeter gaskets reduce sound transmission when closed. For homes on Federal Highway or near Mizner Park, laminated glass is worth the upgrade. It cuts street noise noticeably and we can pull acoustic test data from the manufacturer before you commit to a glass package.
Airtightness & Weather Seal - The VLX 100 uses compression gaskets at every panel joint and threshold. When panels fold closed, each interlock compresses against the next, creating a continuous seal. We then install per AAMA 2400/2410, which governs the structural and weather performance of the installation. The result is an opening that does not whistle in a storm or leak conditioned air in August.
Waterproofing - The bottom track includes a sloped sill design that drains water outward, and we seal every perimeter joint with AAMA 812 low-expansion foam. That matters in Boca Raton, where afternoon thunderstorms can dump an inch of rain in 30 minutes. The sill height, the drainage path, and the perimeter seal work together to keep water outside, even with wind-driven rain.
Wind Resistance - Boca Raton is in a high-velocity hurricane zone, and the VLX 100 is wind-load rated for local climate requirements when specified correctly. The 0.098-inch wall thickness and the aluminum construction give the frame the backbone to hold glass in place during a storm. If you want maximum protection, laminated glass adds a second layer of defense against debris impact.
Security & Hardware - Each panel locks into the next with multi-point hardware, and the primary panel carries a lock that secures top and bottom. There is no long, unsupported span of glass that flexes under pressure. The hinges are stainless steel, the rollers are load-tested, and the handle sets match the finish you choose. It is a door that locks like a door, not like a novelty.
Color & Glass Options
The VLX 100 comes in six finishes. Premium Black is the current darling of Boca Raton’s modern and transitional builds, giving a sharp contrast against white stucco. Pure White disappears into bright coastal interiors and pairs well with traditional Florida architecture. Anodized Silver is the most corrosion-resistant option, ideal for homes within a few blocks of the Intracoastal. Bronze and Champagne read as warmer metals, suited to Mediterranean-style homes in neighborhoods like Royal Palm Yacht & Country Club. Teak Wood is a wood-grain finish on aluminum, so you get the look of timber without the rot, warp, or termite risk that real wood carries in South Florida.
Glass selection depends on orientation and priorities. Clear maximizes brightness. Low-E cuts heat gain on western and southern exposures, and we recommend it for most Boca Raton applications. Tempered is code-required on doors and meets safety glazing standards. Laminated is the upgrade for hurricane impact resistance and sound dampening. Gray Tint and Black Tint reduce glare and add privacy during the day, and they change the exterior look of the home significantly. We will help you pick the right combination for each room.
Installation by TruePane Windows & Doors in Boca Raton
A bifold door is only as good as its installation. A VLX 100 installed out of square will bind, drag, and leak. A VLX 100 installed correctly will open with two fingers and shut out a hurricane. That is the gap we exist to close.
Every TruePane Windows & Doors installation starts with a pre-install inspection of the rough opening. We check the header, the jambs, the floor flatness, and the substrate. If the opening is not right, we fix it before the door arrives, not after. Then we set the frame level, plumb, and square using shims and laser levels, never eyeballing it. The frame is anchored according to manufacturer engineering specs, and we run a continuous AAMA 812 low-expansion foam seal around the entire perimeter, followed by the appropriate interior and exterior sealants. Finally, we water-test the installation, adjust every panel, and walk you through operation and maintenance before we pack up.
We install the VLX 100 to AAMA 2400/2410 standards. Those are the installation standards recognized by the fenestration industry, and they are what keep your manufacturer warranty intact. An improperly installed door voids the warranty. That is not a footnote. That is the whole reason to hire a licensed installer who does this in Boca Raton every week, rather than a handyman who has “done a few doors.”
Boca Raton adds its own layer of considerations: corrosion resistance from salt air, code requirements for impact glazing in wind-borne debris zones, and permitting with the City of Boca Raton Building Department. We handle all of it. You do not need to become a code expert to replace a door.
Frequently Asked Questions - VLX 100 Bifold / Folding Door
The VLX 100 is a custom-configured product, so lead time depends on panel count, glass package, and finish, but most orders for Boca Raton arrive within 4 to 8 weeks from final measurement approval. We give you a written delivery window when you place the order and we notify you the moment your door hits our warehouse. Call (561) 264-1337 to start a quote and get current lead times.
It can, depending on the glass package you select. The VLX 100 with Low-E glass meeting ENERGY STAR criteria for Florida’s climate zone may qualify for federal energy efficiency tax credits under current IRS rules. We do not give tax advice, but we can provide the NFRC performance data your accountant or tax preparer needs. Call (561) 264-1337 and we will walk you through the certified glass options.
The VLX 100 carries a manufacturer warranty on the aluminum frame, hardware, and glass, with terms that vary by component. The critical detail is that the warranty applies only when the door is installed by an authorized partner like TruePane Windows & Doors, per the manufacturer’s installation requirements. We register every door we install on your behalf. Ask us for the warranty document during your quote, and call (561) 264-1337 with any coverage questions.
Yes, within the system’s structural limits. The VLX 100 spans up to 20 feet wide, and panel widths are adjusted to your specific rough opening rather than forcing your opening into stock sizes. Height is configured to your opening as well. If your opening exceeds 20 feet, we will discuss multi-unit layouts or alternative systems. Call (561) 264-1337 for a free measurement and an exact configuration for your space.
Rinse the tracks and sills with clean water every month to clear sand, salt, and leaf debris, and wipe the frames with mild soap and water a few times a year. The rollers and hinges on the VLX 100 are designed for low maintenance, but we recommend an annual adjustment and lubrication check as the panels settle. Coastal Boca Raton homes within a mile of the beach benefit from a more frequent rinse cycle due to salt accumulation. Call (561) 264-1337 and we will include a maintenance walkthrough with your installation.
Get a Quote - VLX 100 Bifold / Folding Door in Boca Raton
If you are planning a wall-to-wall opening in Boca Raton, let us measure it properly and price it accurately. We provide free on-site measurements, written line-item quotes, and no-pressure guidance on glass, finish, and panel configuration. Call TruePane Windows & Doors at (561) 264-1337 to start your project.
Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Boca Raton, FL.
