Bay & Bow Windows

Bay & Bow Windows in Boca Raton, FL | TruePane Windows & Doors

Bay and bow windows are projecting, multi-panel window systems that extend beyond your home’s exterior wall, adding usable interior space and wide, panoramic sightlines. In Boca Raton, where hurricane impact requirements shape nearly every window decision, we’ve seen these configurations become a favorite for living rooms, breakfast nooks, and waterfront properties along the Intracoastal. TruePane Windows & Doors fabricates and installs impact-rated bay and bow configurations through our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, matching each unit to your specific wind zone and opening dimensions. Call (561) 264-1337 to discuss a bay or bow window for your Boca Raton home.

Call (561) 264-1337

Product Overview - Bay & Bow Windows

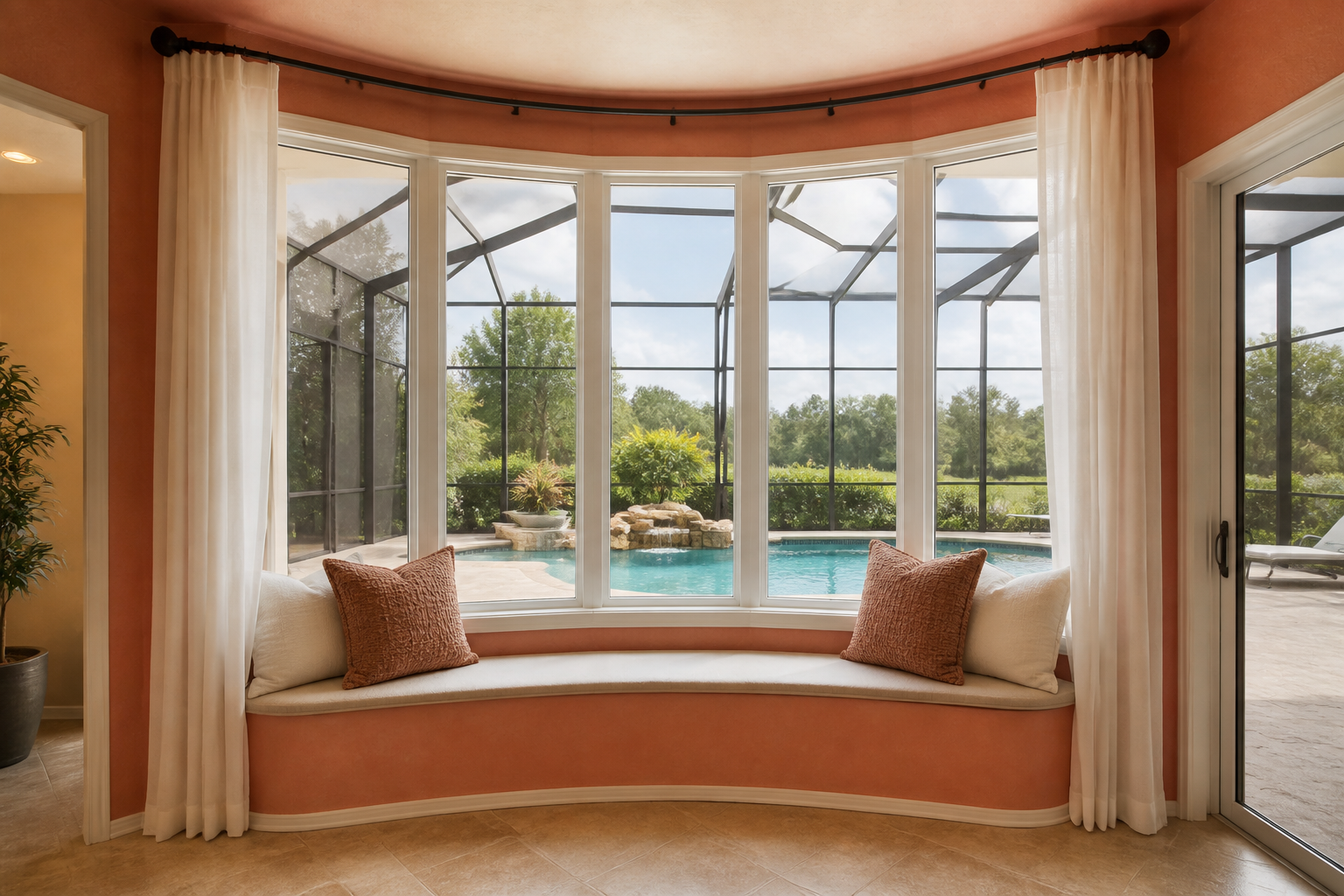

A bay window typically combines three panels: a wide fixed center unit flanked by two angled operable or fixed side panels. A bow window uses four or more panels arranged in a graceful arc. Both create a projection, but bow profiles trace a softer curve while bay configurations sit at defined angles, usually 30 or 45 degrees. The result is added interior square footage that reads as a window seat, a plant ledge, or simply breathing room, paired with a sightline that captures more of Boca Raton’s subtropical light.

What separates the impact-rated versions we sell and install at TruePane Windows & Doors from standard bay and bow profiles is the glass package and the structural engineering behind the projection. Each panel in a bay or bow carries laminated impact glass with a PVB interlayer. The frames are aluminum or vinyl, custom fabricated to the opening, never pieced together from stock sizes. In a hurricane-prone coastal market, the projection itself becomes a wind-loading concern, which is why design pressure is calculated per configuration and matched to your wind zone, up to +/-100, never higher. We install these systems level, plumb, and square in Boca Raton and surrounding Palm Beach County communities, following AAMA 2400/2410 practice with AAMA 812 low-expansion foam perimeter sealant.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected for structural rigidity and coastal corrosion resistance
• Maximum size: Custom fabricated to the opening; no stock-size ceiling
• Glass options: Laminated Impact Glass with PVB interlayer, Low-E Insulated Glass, Tinted Glass, Clear Glass
• Color/finish options: White, Almond, Bronze, Black, Tan
• Sill options: Standard Sill, Seat/Shelf Sill
• Design pressure: Matched to your wind zone, up to +/-100, never higher
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration, verified on your specific quote
• Code compliance: Engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements

Because bay and bow windows are multi-panel assemblies, the structural mulling, corner posts, and seat board details are as important as the glass. We spec each component per the approved configuration, not by swapping parts between product families.

Hurricane & Compliance Performance

Laminated Impact Glass
Each panel uses laminated glass with a PVB (polyvinyl butyral) interlayer. Under impact, the glass fractures but the interlayer holds it in the frame, keeping wind, rain, and debris on the outside. This is the same technology used in our horizontal roller and sliding window lines.

Miami-Dade NOA / Florida Product Approval
Every bay and bow configuration we quote carries the applicable Miami-Dade Notice of Acceptance and Florida Product Approval numbers. These are issued per configuration, meaning the specific panel sizes, mulling, and seat-board details on your quote determine the approval documents we submit with your permit.

FBC / HVHZ Compliance
Boca Raton falls within the High-Velocity Hurricane Zone under the Florida Building Code. Our bay and bow installations are engineered to FBC HVHZ requirements, which govern everything from glass retention to frame anchoring to water management.

TAS 201 / 202 / 203 Testing Context
The HVHZ protocol family includes TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. Impact-rated products we sell and install are tested under this protocol family, which is the standard Florida code officials look for when reviewing window submittals.

Design Pressure for Your Wind Zone
Design pressures on bay and bow windows are calculated per configuration and matched to your wind zone, up to +/-100, never higher. A projection creates additional wind-loading surfaces, so a competent engineering review matters more on this product than on a flat window.

Energy Performance Options
Low-E and insulated glass options are available across the bay and bow lines we carry. In South Florida, Low-E coatings reduce solar heat gain while preserving visible light, which matters when you’re adding a glazed projection that admits sunlight from three or more directions.

Color & Glass Options

Bay and bow windows anchor a room visually, so finish choice carries more weight than it would on a single-hung utility window. White and almond remain the most common choices in Boca Raton’s Mediterranean and coastal revival homes, where window trim often stays light. Bronze and black have grown popular on more contemporary builds and waterfront renovations, creating contrast against stucco and lighter exterior paint. Tan anchors a softer palette, pairing well with natural stone or tile accents.

On glass, clear laminated impact glass is the starting point for most projects. Tinted glass cuts glare on east-facing morning rooms or west-facing water views. Low-E insulated glass adds energy performance without changing the look from the inside. The PVB interlayer stays consistent across all options, so you keep the impact rating regardless of which glass type suits the room.

Installation by TruePane Windows & Doors in Boca Raton

A bay or bow window is only as strong as the installation behind it. We’ve removed more than a few poorly installed projections in Boca Raton where water had been tracking along the seat board for years, hidden behind trim. The NOA-rated system is engineered as a complete assembly. When a contractor skips the seat board flashing or sets the unit out of square, the approval documents no longer describe what’s actually sitting in the wall.

Our installation process starts with a pre-install inspection of the rough opening, the existing header, and the wall condition. We set every unit level, plumb, and square, then insulate and seal the perimeter with AAMA 812 low-expansion foam sealant. Installation practice follows AAMA 2400/2410 standards. In Boca Raton, coastal exposure and high wind zones mean we pay particular attention to anchoring at the head, seat, and mull connections. We handle permitting awareness for HVHZ jurisdictions, so the Miami-Dade NOA and Florida Product Approval documents are submitted with your permit application. After install, we run a final water test on the perimeter and clean the full work area. The goal is a window that performs on day one and still performs after fifteen hurricane seasons.

Frequently Asked Questions - Bay & Bow Windows

Get a Quote - Bay & Bow Windows in Boca Raton

Ready to see what a bay or bow window would look like in your Boca Raton home? Call TruePane Windows & Doors at (561) 264-1337 to schedule a free on-site measurement and start your quote. We’ll walk you through configuration options, finish choices, glass packages, and approval documents for your wind zone. Estimates are free, and you’ll get line-item pricing before any commitment.

Written by the team at TruePane Windows & Doors, serving Boca Raton, FL and surrounding Palm Beach County communities.
